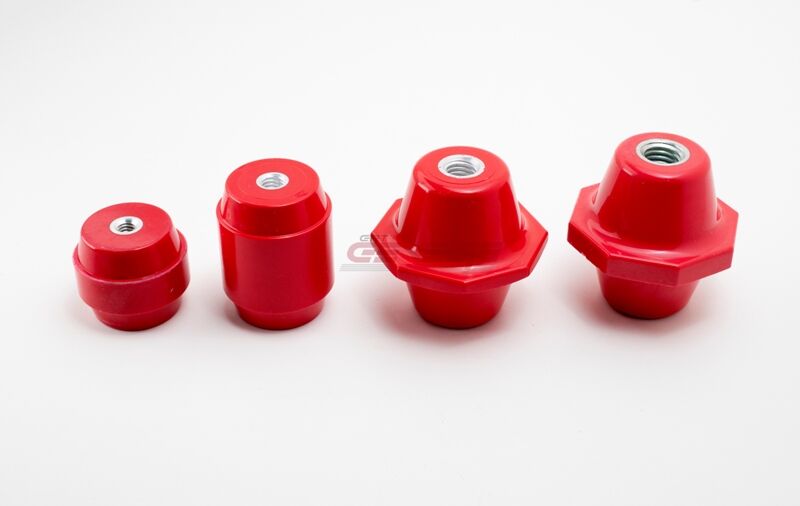

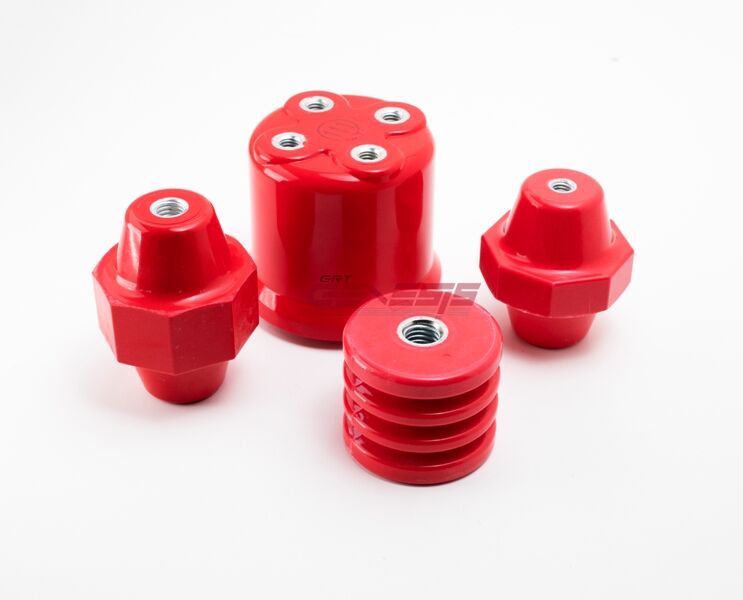

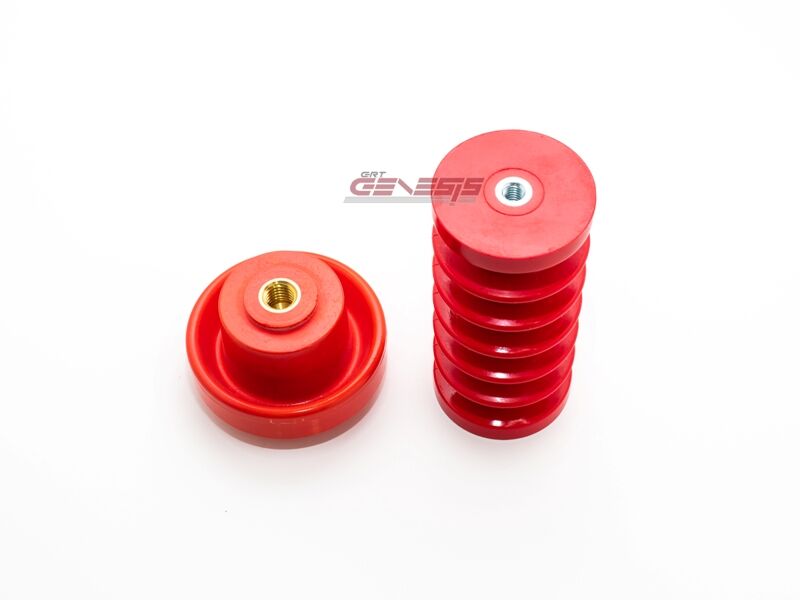

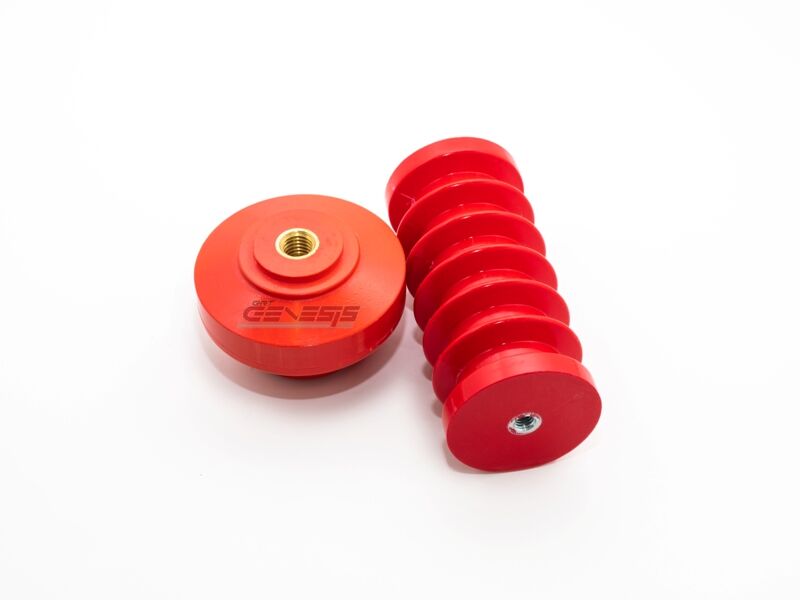

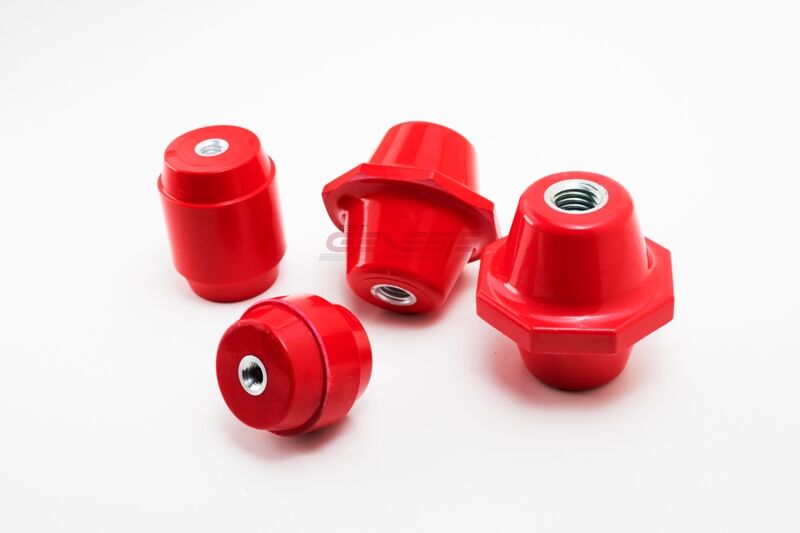

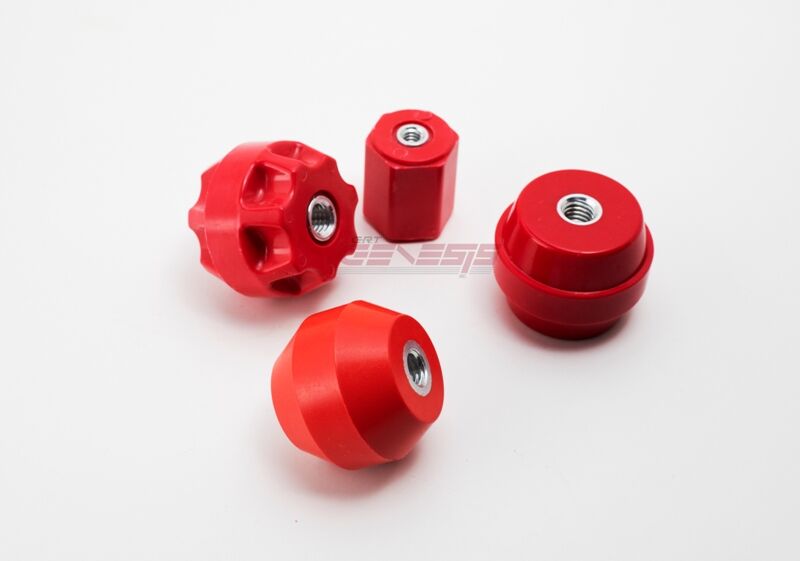

Standoff Insulators
Standoff Insulators are moulded from a Flame Retardant and Track Resistant Glass Reinforced Thermoset Polyester molding compound recognized under UL Material Number E 80533 (N). They combine high Mechanical Strength with high Arc Resistance and Electrical Value at elevated temperatures and humidity. These shatter resistant insulators meet the most exacting standards in a variety of critical applications.
Available in 1″ hex to 7″ ribbed (600 volt to 15KV). Available in Epoxy with high electrical (up to 35kv) and mechanical properties; these are used in numerous configurations for both indoor and outdoor applications. Special molded shapes in glass, FRP, Epoxy & Ceramic available on request.
KEY FEATURES:
- High-Strength FRP Insulators — Shatter, Moisture & Flame-Resistant
- Voltage Rating
- Outdoor Use
- Short Time Electrical Strength
- Torque Strength
- UL Recognition
Download GRT Standoff Insulators Catalog
For more details click here to visit our Material Specification Library Page (Size Charts and Spec Sheets).
Description
Typical Electrical Insulation Applications:
| Low Voltage: | High Voltage: |
| Electronics | Transformers |
| Appliances | Power Generation |
| Electrical Panels | Switchgear |
| Small Motors |
| Our Insulators: | |
|
|
|
|
|
|
|
|
|
|
|
|
